Cantilever Tension Sensor TLS-A
Short Description:
Cantilever Tension Sensor TLS-A
Applications:
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode , high performance film and other narrow materials, The sensor’s detection signal is not affected by the position of the coil on the roller .
Feature:
Easy to install with various installation modes.
Detection signal is not affected by the position of the coil on the roller.
Built-in new mechanical 10times anti-linearity and repeatability.
Small size, little space required for installation.
Specification:
Rated Output | 1.0±10%mV/V | Repeatability | 0.1% F.S. | |
Nonlinearity | 0.2 % F.S. | Zero Balance | ± 2% F.S. | |
Temp effect on zero | 0.02 %F.S./℃ | Compensated temp rang | -10~+40℃ | |
Operating temp range | -20~+80℃ | Insulation | ≥ 2000 MΩ/100VDC | |
Recommended excitation | 5-10VDC | Ultimate load limit | 1000 %F.S. | |
Cable size | Ф5×5m | Protection class | IP65 | |
Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |

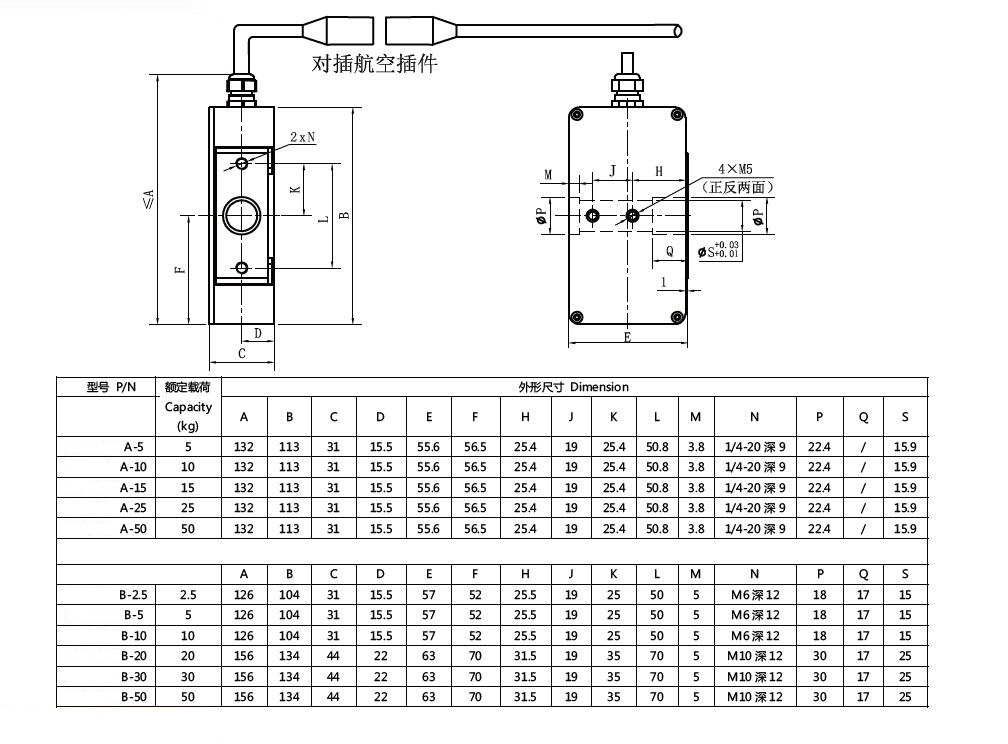

Dimension Drawing:(mm)
![TLSA DRAWING](/uploads/TLSA-DRAWING1.jpg)
