Compression Load Cells Sensor YLS-A
Short Description:
Compression Load Cells Sensor YLS-A
Applications:
Automotive, medical, robot, electronic, mechanical equipment, automation equipment, etc.
Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine and grasping force measurement for robotic hands.
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-1000kg.
Capsule structural design, pressure bearing, easy to install.
High quality stainless steel material
High response frequency
Specification:
Capacity(optional) | 5kg,10kg, 20kg , 50kg, 100kg,200kg, 500kg , 1000kg | Material |
Stainless Steel |
|
Rated Output | 1.0-1.5mV/V | Hysteresis | 0.5% F.S. | |
Nonlinearity | 0.5 % F.S. | Repeatability | 0.1% F.S. | |
Creep( 30min) | 0.1 % F.S. | Zero Balance | ± 2% F.S. | |
Temp effect on output | 0.2 %F.S./10℃ | Compensated temp rang | -10~+40℃ | |
Temp effect on zero | 0.2 %F.S./10℃ | Operating temp range | -20~+80℃ | |
Input Impedance | 1000±100Ω | Output Impedance | 1000±100Ω | |
Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5VDC | |
Maximum excitation | 10VDC | Safe load limit | 150 %F.S. | |
Life | Full scale more than 1 million times | Ultimate load limit | 200 %F.S. | |
Cable size | Ф3×4m | Protection class | IP64 | |
Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |

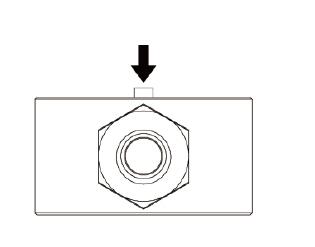

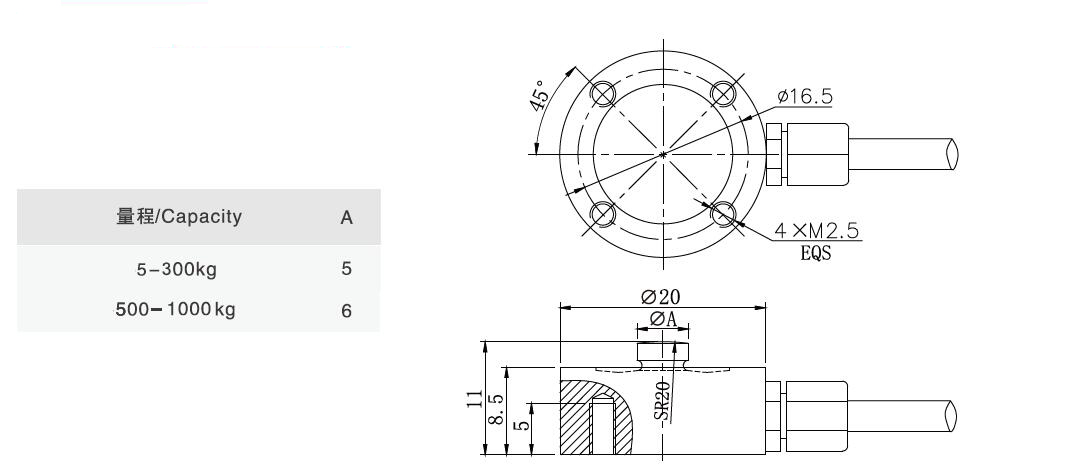

Dimension Drawing:(mm)
