Compression Load Cells Sensor YLS-F
Short Description:
Compression Load Cells Sensor YLS-F
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-30T.
Pressure bearing, easy to install.
High precision and high stability
High response frequency
Specification:
Capacity(optional) |
30T |
Material |
Alloy Steel |
Rated Output | 1.5 ±10% mV/V | Hysteresis | 0.2% F.S. |
Nonlinearity | 0.2 % F.S. | Repeatability | 0.2% F.S. |
Creep( 30min) | 0.2 % F.S. | Zero Balance | ± 2% F.S. |
Temp effect on output | 0.2%F.S./10℃ | Compensated temp rang | -10~+40℃ |
Temp effect on zero | 0.2 %F.S./10℃ | Operating temp range | -20~+80℃ |
Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5-10VDC |
Maximum excitation | 10VDC | Safe load limit | 150 %F.S. |
Life | Full scale more than 1 million times | Ultimate load limit | 200 %F.S. |
Cable size | Ф4×4m | Protection class | IP66 |
Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |

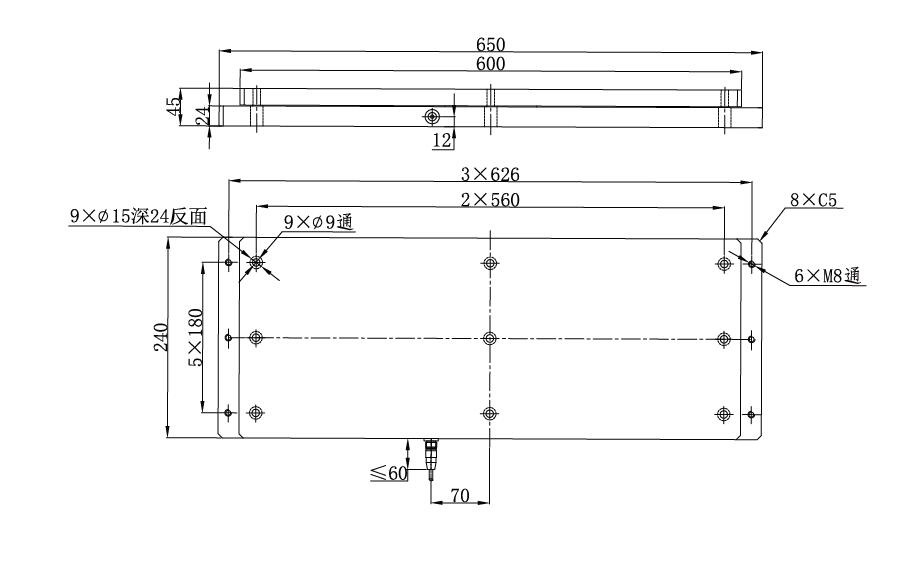

Dimension Drawing:(mm)

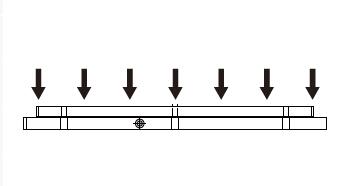

![YLS-F LOADING](/uploads/YLS-F-LOADING.jpg)
![YLS-A DRAWING](/uploads/YLS-A-DRAWING.jpg)
![YLS-F DRAWING 2](/uploads/YLS-F-DRAWING-2.jpg)
