Dynamic Torque Sensor DTS-B
Short Description:
Dynamic Torque Sensor DTS-B
Applications:
Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive , automobile, aircraft, mining machinery, etc
Feature:
With clear function, various communication methods are available

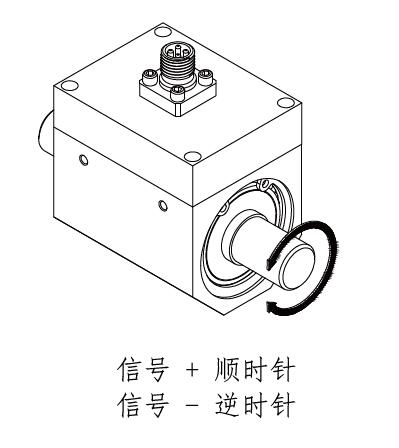

Output positive and negative torque signals.
Non-contact structure , no wear .
Up to 5000r/min can be customized .
High precision with the principle of resistance strain type.
Good temperature characteristics with self-compensated strain gauge .
High sampling frequency, Quick response, Strong anti-interference ability
Specification:
| Output Signal | (M-)-10V-0-10V(M+)/RS485 | Max rotate speed | 5000r/min |
| Nonlinearity | ≤± 0.2 % F.S. | Repeatability | ≤± 0.1 % F.S. |
| Zero Balance | ± 2% F.S. | Operating temp range | -20～+60℃ |
| Compensated temp rang | -10～+40℃ | Insulation | ≥ 2000 MΩ/50VDC |
| Recommended excitation | 24VDC | Safe load limit | 200 %F.S. |
| Temp effect on output | ≤± 0.2 %F.S./10℃ | Temp effect on zero | ≤ ± 0.2 %F.S./10℃ |
| Cable Size |
Φ5×4m |
Protection class | IP64 |
| Cable connection |
24V+:red ;24V-:black;Analog output+:green/RS485+:blue;Analog output-:white/RS485-: yellow;Reset: brown |
||

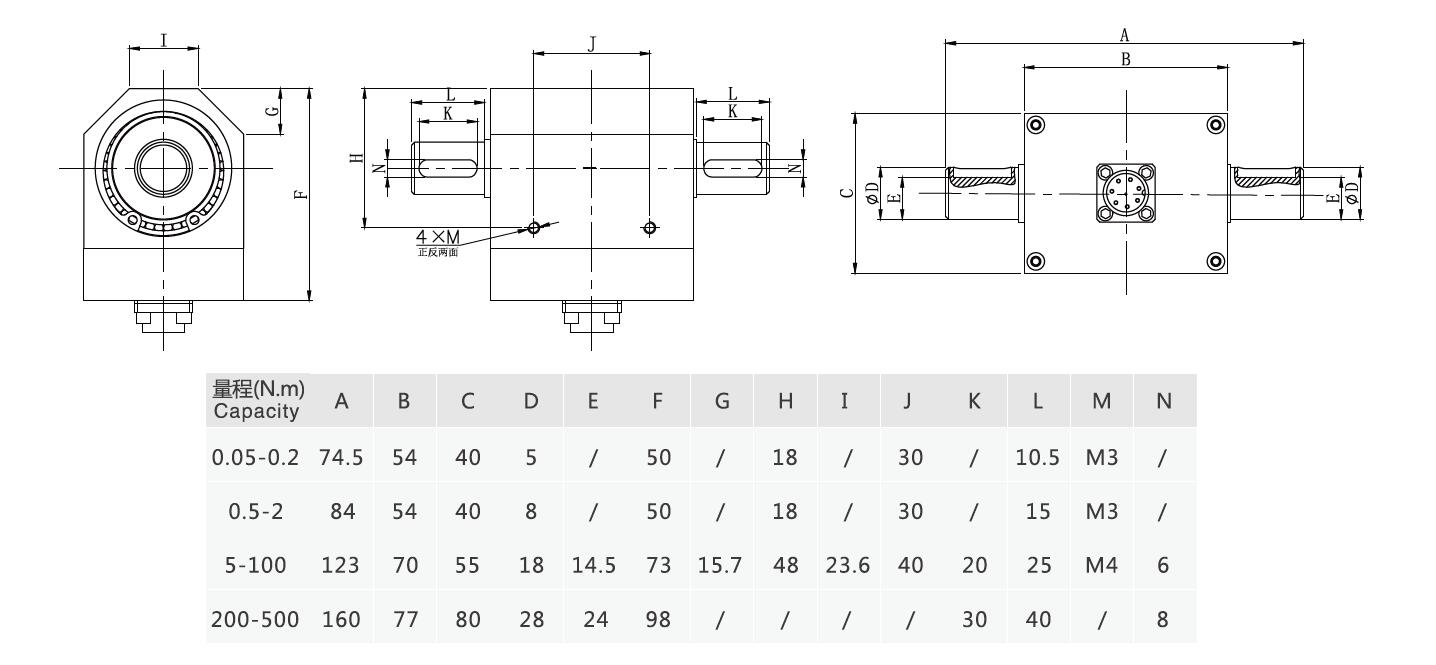

Dimension Drawing:(mm)
