Force Torque Sensor FTS-B
Short Description:
Force Torque Sensor FTS-B
Feature:
Quick response
High precision with the principle of resistance strain type
Good temperature characteristics with self-compensated strain gauge
Decoupled structure , tiny long term crosstalk error.
Specification:
| Nonlinearity | ≤ ±0.5 % F.S. | Repeatability | ≤ ±0.05 % F.S. |
| Zero Balance | ± 5% F.S. | Operating temp range | -20～+80℃ |
| Compensated temp rang | -10～+40℃ | Insulation | ≥ 2000 MΩ/50VDC |
| Recommended excitation | 5-10VDC | Safe load limit | 300 %F.S. |
| Temp effect on output | ≤0.1 %F.S./10℃ | Temp effect on zero | ≤0.1 %F.S./10℃ |
| Long term crosstalk error | ≤3 %F.S. | Protection class | IP65 |
| Cable Size | Φ4.5×0.5m+Φ4.5×2.5m+14pins Plug |

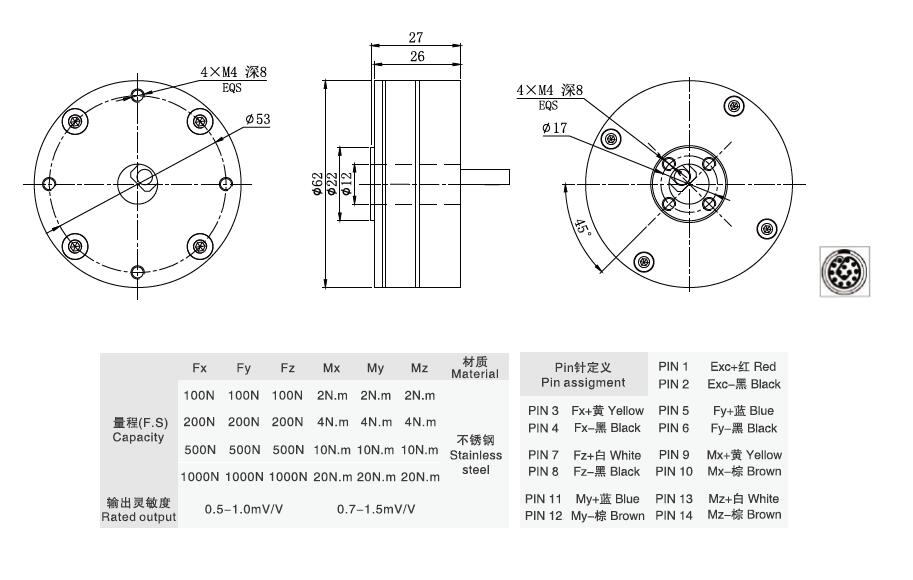

Dimension Drawing:(mm)
