High Temperature Infrared Temperature Sensor TS-402

Short Description:

High Temperature Infrared Temperature Sensor TS-402
Product Features:
Rugged metal case ; easy installation
High-precision, high optical resolution
4 ~ 20mA standard signal output
Safe to use, long life to use
Dual laser light can be more effective to focus on the measured object and improve the measurement accuracy

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Technical Parameters

Temperature range	-50~1800℃(-58~3272°F)
Temperature accuracy	± 2% or ± 2 ℃
Signal output	4-20mA
Supply voltage	24VDC 50mA Max
Ambient temperature	0 ~ 50 ℃
Storage temperature	-20~50℃
Repeatability	±1% or ±1℃
Emissivity	0.95
Response time	500ms
Response wavelength	8-14um
Relative humidity	10-95% RH
Shell	Aluminum+Stainless steel

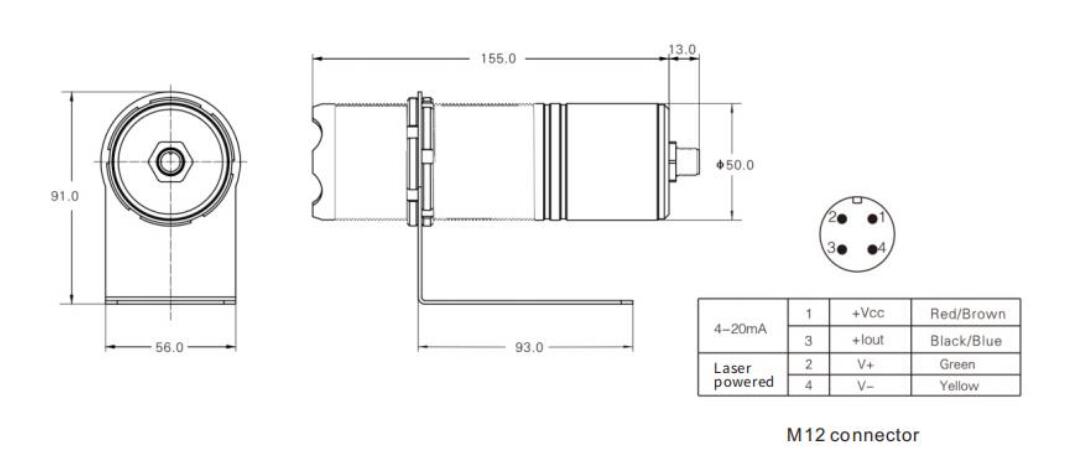

Electrical connection	M12 Connector
Laser Powered	9V Battery (use before fixed installation)
IP grade	IP65
Certification standards	CE certificate, Compliance with EU anti-electromagnetic interference standards
