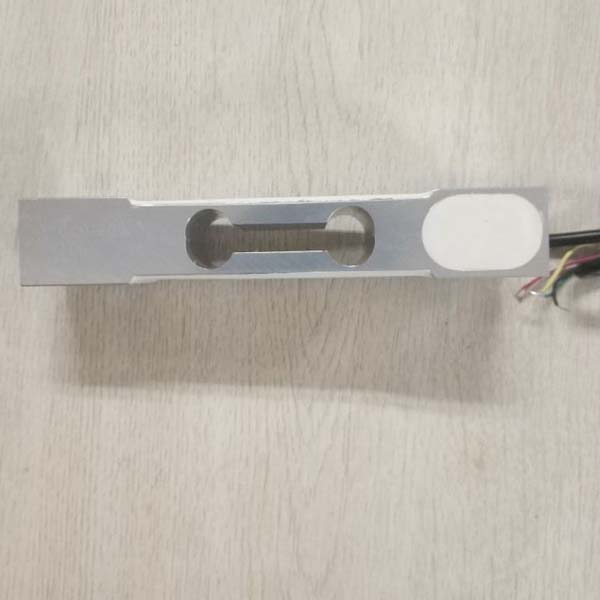

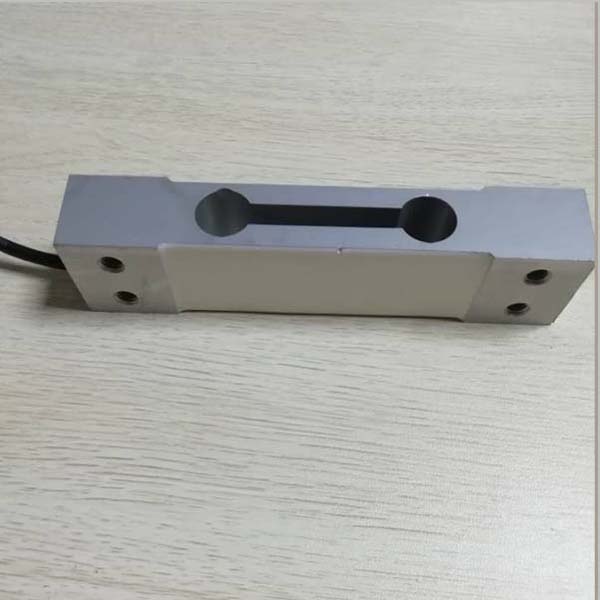

OIML Single Point Load Cells AMB
Short Description:
OIML Single Point Bench Scale Load Cells AMB
OIML Approval,Appication for small Bench Scale, Adopting high sensitivity strain gauges，Made of high quality aluminum alloy with high strength, the device has sturdy structure which is available in the capacity from 3kg to 120 kg. With the anodic oxidation treatment, it is resistant to corrosion, water and oxygen which is suitable for all kinds of environment.With the scientific and ergonomic design, it is convenient to use which can greatly save time, energy and money by improving the working efficiency. As well, it is available to provide the stable and excellent performance.It is a endurable product with extended service time that it can be used for a long period. And it is easy to maintain and clean, greatly prolonging its life span.
Specification：
|
Application : |
Price Computing Scales , Bench Scales |
|
Model : |
AMB |
|
Capacity |
3, 5, 10, 20, 30, 35, 40, 50, 80, 100,120 KG |
|
Output Sensitivity |
2.0± 0.2 MV/V |
|
Nonlinearity |
0.02 %F.S |
|
Repeatability |
0.02 %F.S |
|
Hysteresis |
0.02 %F.S |
|
Creep(30 min) |
0.02 %F.S/30 Mins |
|
Temperature effect on Sensitivity |
0.03 %F.S/10℃ |
|
Temperature effect on Zero |
0.034 %F.S/10 ℃ |
|
Zero Balance |
﹤1.5%F.S |
|
Input Impedance |
405 ± 10Ω |
|
output Impedance |
350 ± 5Ω |
|
Insulation Resistance |
5000 MΩ |
|
Recommend Excitation Voltage |
10V |
|
Maximum Excitation Voltage |
15V |
|
Compensated Temperature Range |
-10～+40℃ |
|
Operating Temperature Range |
-20～+60℃ |
|
Safe Overload |
120 %F.S |
|
Ultimate Overload |
150 %F.S |
|
Protection Grade |
IP65 |
|
Material |
Aluminium |
|
Cable Length |
φ4× 0.35 M |
|
Recommended Platter Size |
300 × 300 MM |
