S Type Tension Load Cells PST
Short Description:
S Type Tension Load Cells PST
Application for Crane Scales, Hopper Scale. Adopting high sensitivity Strain gauges，Made of high quality alloy steel with high strength, Laser Welded with IP68 waterproof grade .the device has sturdy structure which is available in the capacity from 20kg to 10ton With the nickel plate treatment, it is resistant to corrosion, water and oxygen which is suitable for all kinds of environment. With the scientific and ergonomic design, it is convenient to use which can greatly save time, energy and money by improving the working efficiency. As well, it is available to provide the stable and excellent performance. It is a endurable product with extended service time that it can be used for a long period. And it is easy to maintain and clean, greatly prolonging its life span.
Specification
|
Application : |
Crane Scales |
|
Model : |
PST |
|
Capacity |

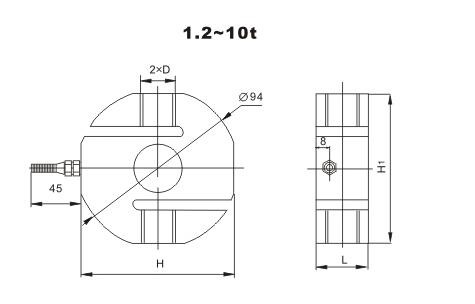

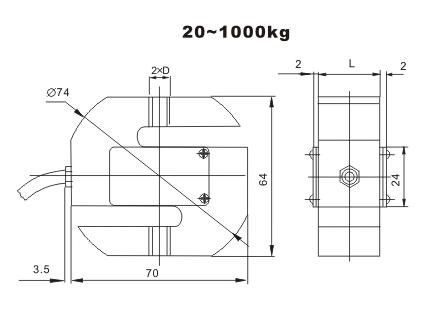

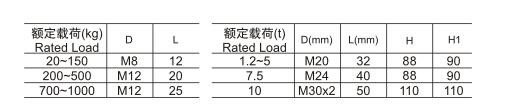

20, 30, 50, 100,150, 200, 250,300,500,700,1000KG,1.2T,1.5T,2T,2.2T,3.5T,7.5T,10T |
|
Output Sensitivity |
2.0± 0.002 mV/V |
|
Creep(30 min) |
0.02 %F.S/30 Mins |
|
Zero Balance |
±1.0 %F.S |
|
Input Impedance |
400 ± 10Ω |
|
output Impedance |
352 ± 2Ω |
|
Insulation Resistance |
≥5000 MΩ |
|
Recommend Excitation Voltage |
10-12V/DC |
|
Maximum Excitation Voltage |
15/V/DC |
|
Operating Temperature Range |
-30～+70℃ |
|
Safe Overload |
120 %F.S |
|
Ultimate Overload |
200 %F.S |
|
Protection Grade |
IP67 (20-1000KG) / IP68(1.2-7.5T) |
|
Material |
Alloy Steel |
|
Cable Length |
φ5×3M (20-1000KG), φ6×3M (1.2-7.5T) |
