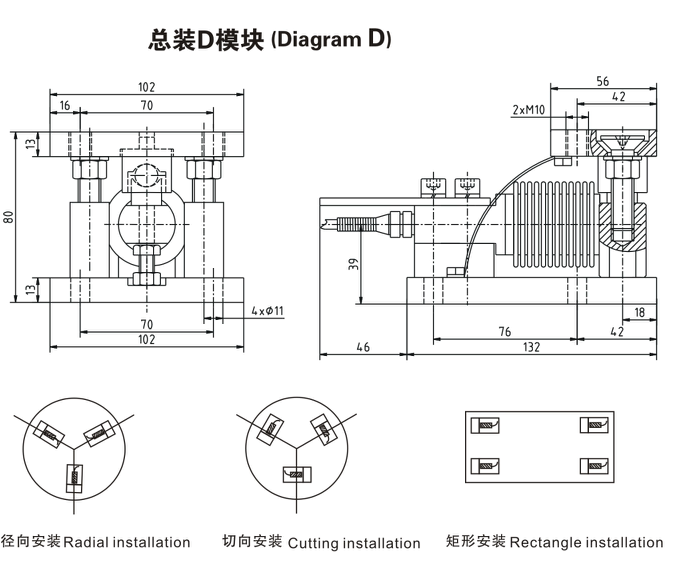

Shear Beam Load Cells HSA with D Type Weighing Module

Short Description:

Shear Beam Load Cells HSA with D Type Weighing Module

Application：
For Material tower
The weighing module is installed under the foot of the tower, and the weighing system is used to achieve precise ingredients.
Features:
Simple structure and easy installation
Mounting height adjustable
Suitable for static tank weighing not so high precision requirements

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Specification

Application	Hopper Scales ,Belt Scales
Rated Load	5, 10, 20, 30, 40,50,75, 100, 150, 200, 250, 300, 500kg
Temperature Range Compensated	-10～+40℃
Sensitivity	2±0.002mV/V
Operating Temp Range	-30～+70℃
Accuracy Class	C2-C5
Safe load limit	120%F.S
Over load limit	150%F.S
Zero balance	±1%F.S
TCO	±0.02%F.S/10℃
TC SPAN	±0.02%F.S/10℃
Insulation resistance	≥5000MΩ
Maximum excitation	15V DC
Recommend excitation	10～12V DC
Protection Class	IP68
Input resistance	400±10Ω
Construction	Alloy Steel-S/-SS;Stainless steel
Output resistance	352±3Ω
Cable: Length;	3m, 5m(20kg) Diameter:Ф5mm
