Soil NPK Sensor for Agriculture ST-2006E
Short Description:
Soil NPK Sensor for Agriculture ST-2006E
Product Features:
Easy to carry and install
Fast response
High measurement accuracy
Excellent sealing, corrosive resistance
Measure NPK content
High data transmission efficiency
Applications:
Greenhouses, Soil testing, Agricultural irrigation, Field soi, Grass pastures, Meteorological monitoring
Plant cultivation, Flowers and vegetables, Scientific experiments
Technical Parameters
|
Units of measurement |
mg/kg（mg/L） |
|
Measurement parameters |
Soil Nitrogen, Phosphorus, Potassium |
|
Measurement range |
0-1999mg/kg（mg/L) |
|
Measurement accuracy |
±3%（mg/kg） |
|
Resolution |
1mg/kg（mg/L） |
|
Supply voltage |
5-24V DC |
|
The scope of work |
0-50℃ |
|
Stable schedule |
1 second after power on |
|
Response time |
<10 seconds |
|
Probe length |
55mm，φ3mm |
|
Sealing material |
ABS engineering plastic, epoxy resin, |
|
Probe material |
316L stainless steel |
|
Cable Specifications |
Standard 2 meters (other cable lengths can be customized, up to 1200 meters) |
|
Output signal |
RS485 (standard Modbus-RTU protocol, device default address: 01 |

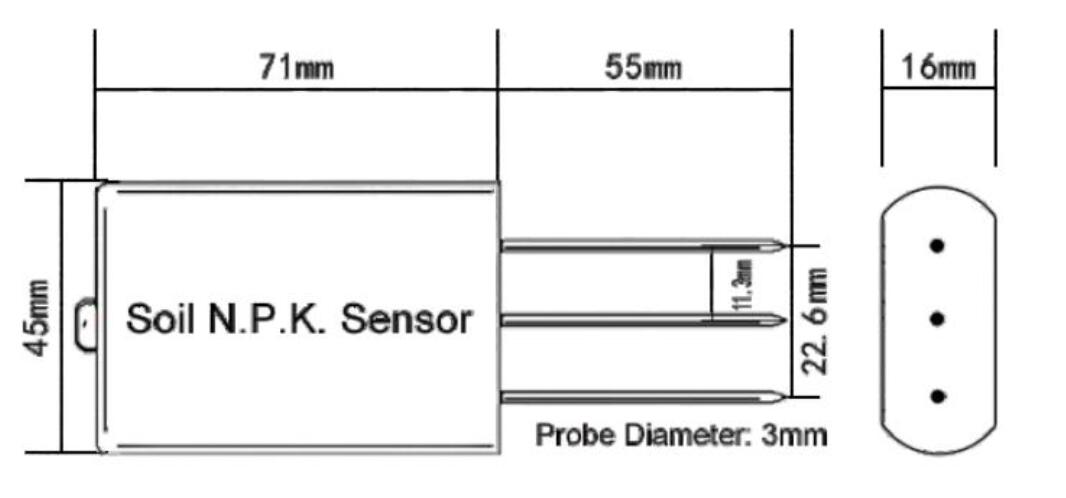

Product Dimensions
