Static Torque Sensor DTS-C
Short Description:
Static Torque Sensor DTS-C
Applications:
Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive , automobile, aircraft, mining machinery, etc
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-150Nm.
Easy to install.
Small size, beautiful appearance.
Specification:
| Capacity(optional) | 1N.m, 5N.m, 10N.m, 20 N.m,50N.m, 100N.m, 150N.m | Material |
Aluminum alloy /Alloy Steel |
|
| Rated Output | 1.0-2.0mV/V | Hysteresis | 0.2% F.S. | |
| Nonlinearity | 0.2 % F.S. | Repeatability | 0.2% F.S. | |
| Creep( 30min) | 0.2 % F.S. | Zero Balance | ± 2% F.S. | |
| Temp effect on output | 0.05 %F.S./10℃ | Compensated temp rang | -10～+40℃ | |
| Temp effect on zero | 0.05 %F.S./10℃ | Operating temp range | -20～+80℃ | |
| Input Impedance | 410±50Ω | Output Impedance | 350±5Ω | |
| Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5-10VDC | |
| Maximum excitation | 10VDC | Safe load limit | 150 %F.S. | |
| Life | Full scale more than 1 million times | Ultimate load limit | 200 %F.S. | |
| Cable size | Ф3×4m | Protection class | IP64 | |
| Cable connection |

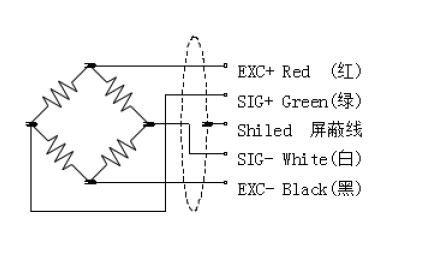

EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |
|||

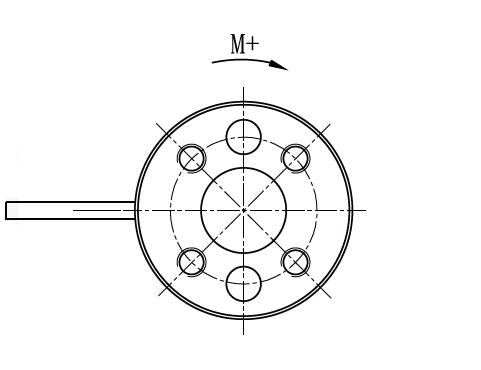

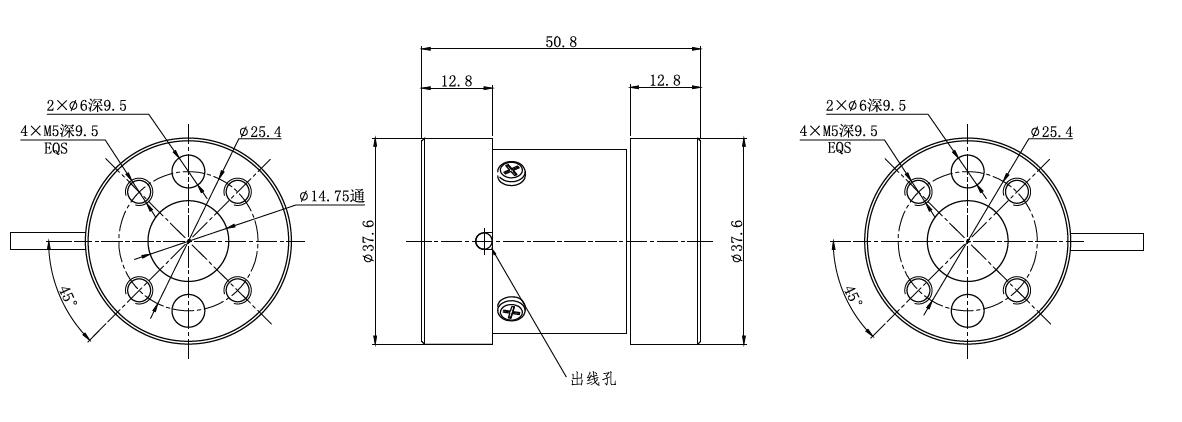

Dimension Drawing:(mm)
