Tension and Compression Load Cells Sensor TNS-A
Short Description:
Tension and Compression Load Cells Sensor TNS-A
Applications:
Mainly applied in tension and compression testing instruments and automatic equipment fields, such as small range of force testing instruments, hopper scales, lifting hook scales, insertion force test instruments , and etc.
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-10kg.
Compression and tension, easy to install and flexible.
Small size, beautiful appearance.
Specification:
| Capacity(optional) | 3kg, 5kg,10kg, | Material |
Stainless Steel |
|
| Rated Output | 2.0±10%mV/V | Hysteresis | 0.1% F.S. | |
| Nonlinearity | 0.1 % F.S. | Repeatability | 0.1% F.S. | |
| Creep( 30min) | 0.1 % F.S. | Zero Balance | ± 2% F.S. | |
| Temp effect on output | 0.02 %F.S./10℃ | Compensated temp rang | -10～+40℃ | |
| Temp effect on zero | 0.02 %F.S./10℃ | Operating temp range | -20～+80℃ | |
| Input Impedance | 350±10Ω | Output Impedance | 350±5Ω | |
| Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5-10VDC | |
| Maximum excitation | 10VDC | Safe load limit | 150 %F.S. | |
| Life | Full scale more than 1 million times | Ultimate load limit | 200 %F.S. | |
| Cable size | Ф2×4m | Protection class | IP64 | |
| Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |
|||

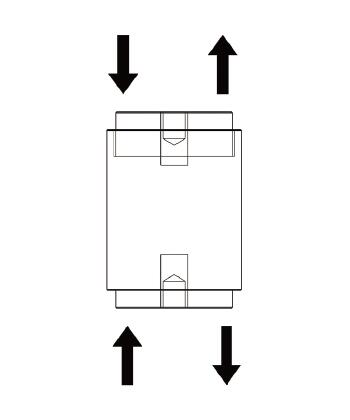

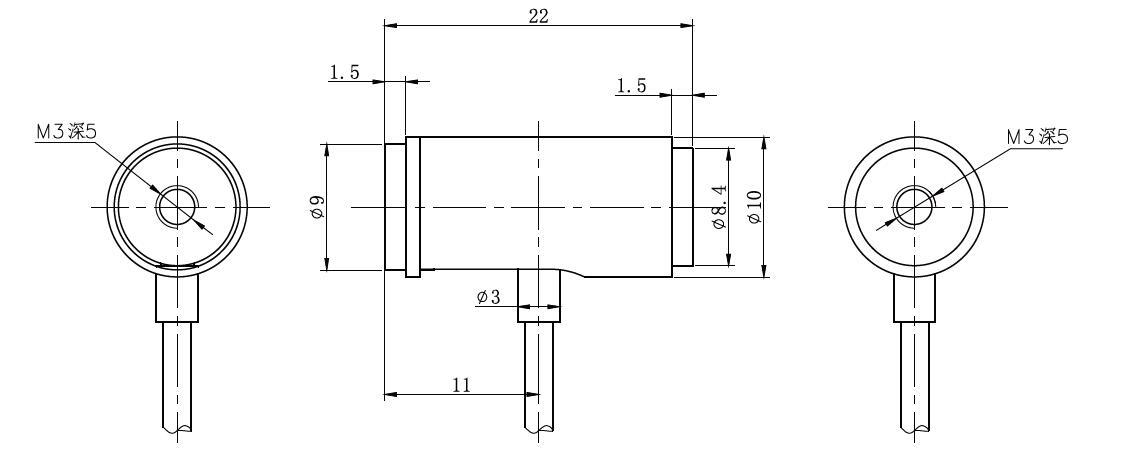

Dimension Drawing:(mm)
