Tension and Compression Load Cells Sensor TNS-C
Short Description:
Tension and Compression Load Cells Sensor TNS-C
Applications:
Mainly applied in tension and compression testing instruments and automatic equipment fields, such as small range of force testing instruments, hopper scales, lifting hook scales, insertion force test instruments , and etc.
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-30T.

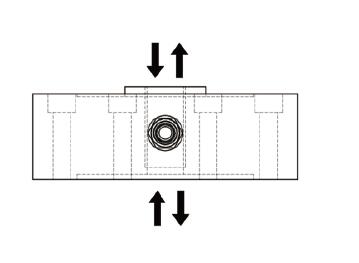

Compression and tension, easy to install and flexible.
Small size, beautiful appearance.
Specification:
Capacity(optional) |
50kg,100kg,200kg,500kg, 1T,2T, 5T, 7T,10T, 20T, 30T |
Material |
Alloy Steel |
|
Rated Output | 2.0±0.05mV/V | Hysteresis | 0.05% F.S. | |
Nonlinearity | 0.1 % F.S. | Repeatability | 0.05% F.S. | |
Creep( 30min) | 0.05 % F.S. | Zero Balance | ± 2% F.S. | |
Temp effect on output | 0.05 %F.S./10℃ | Compensated temp rang | -10~+40℃ | |
Temp effect on zero | 0.05 %F.S./10℃ | Operating temp range | -20~+80℃ | |
Input Impedance | 750±50Ω | Output Impedance | 700±10Ω | |
Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5-10VDC | |
Maximum excitation | 10VDC | Safe load limit | 150 %F.S. | |
Life | Full scale more than 1 million times | Ultimate load limit | 200 %F.S. | |
Cable size | Ф5×3m | Protection class | IP66 | |
Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |

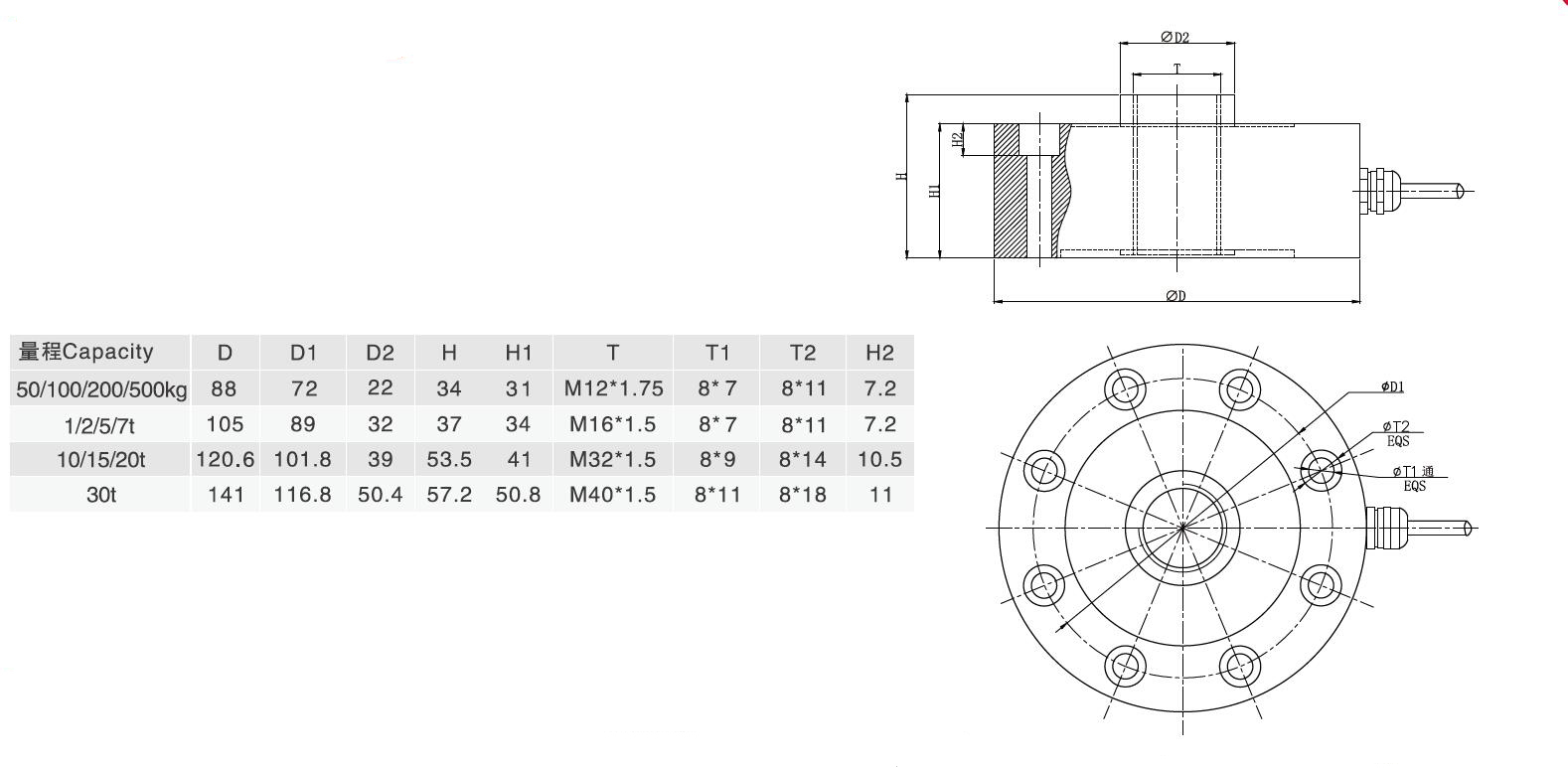

Dimension Drawing:(mm)
