Tension and Compression Load Cells Sensor TNS-F
Short Description:
Tension and Compression Load Cells Sensor TNS-F
Applications:
Mainly applied in tension and compression testing instruments and automatic equipment fields, such as small range of force testing instruments, hopper scales, lifting hook scales, insertion force test instruments , and etc.
Feature:
Adopts high precision resistance strain principle
Meet force measurement in the range of 0-100kg.
S type structural design, compression and tension, easy to install and flexible.
Small size, beautiful appearance.
Specification:
Capacity(optional) |
10kg ,30kg , 50kg,100kg |
Material |
Stainless Steel |
|
Rated Output | 2.0±10%mV/V | Hysteresis | 0.05% F.S. | |
Nonlinearity | 0.05 % F.S. | Repeatability | 0.05% F.S. | |
Creep( 30min) | 0.05 % F.S. | Zero Balance | ± 2% F.S. | |
Temp effect on output | 0.05 %F.S./10℃ | Compensated temp rang | -10~+40℃ | |
Temp effect on zero | 0.05 %F.S./10℃ | Operating temp range | -20~+80℃ | |
Input Impedance | 380±30Ω | Output Impedance | 350±5Ω | |
Insulation | ≥ 5000 MΩ/100VDC | Recommended excitation | 5-10VDC | |
Maximum excitation | 10VDC | Safe load limit | 200 %F.S. | |
Life | Full scale more than 1 million times | Ultimate load limit | 500 %F.S. | |
Cable size | Ф3×4m | Protection class | IP65 | |
Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |

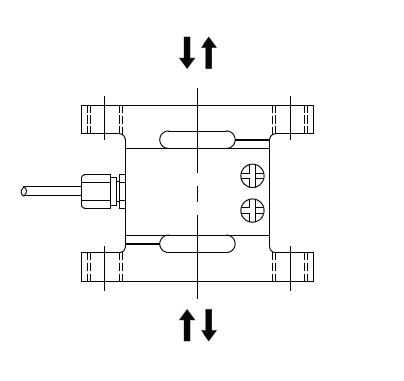

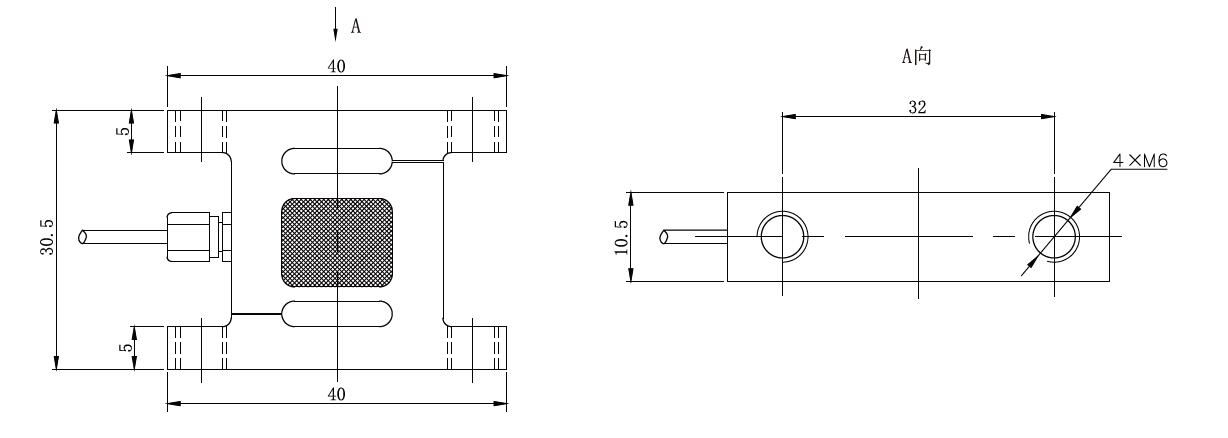

Dimension Drawing:(mm)
