Through-hole Tension Sensor TLS-E
Short Description:
Through-hole Tension Sensor TLS-E
Applications:
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode , high performance film and other narrow materials, The sensor’s detection signal is not affected by the position of the coil on the roller .
Feature:
Compact structure, easy to install .
Can be installed directly inside or outside the machine frame.
Minor temperature drift, good non-linearity and repeatability.
Wide range , stainless steel material .
Built-in new mechanical 10times anti-overload protection
Self-aligning bearing which can compensate installation error.
Standard M12*1 plug.
Specification:
| Rated Output | 1.5±0.2%mV/V | Repeatability | 0.15% F.S. | |
| Nonlinearity | 0.3% F.S. | Zero Balance | ± 2% F.S. | |
| Temp effect on zero | 0.02 %F.S./℃ | Compensated temp rang | -10～+40℃ | |
| Operating temp range | -20～+80℃ | Insulation | ≥ 2000 MΩ/100VDC | |
| Recommended excitation | 5-10VDC | Ultimate load limit | 1000 %F.S. | |
| Cable size | Ф5×5m | Protection class | IP65 | |
| Cable connection |
EXC+:Red, EXC-: Black ,SIG:+Green, SIG-:White, |
|||

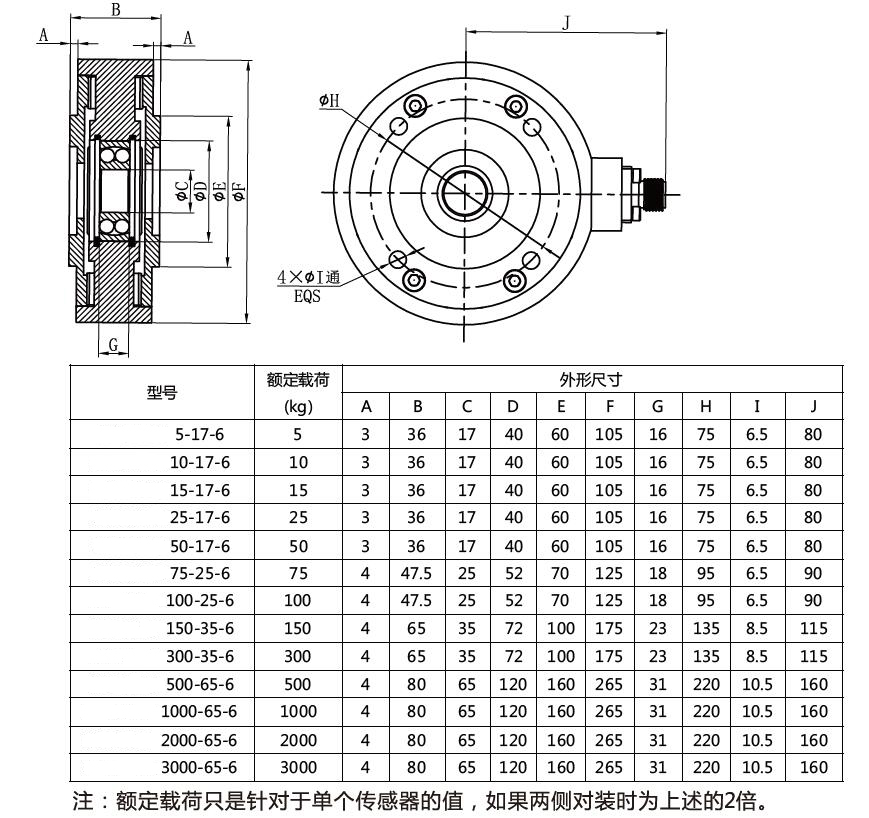

Dimension Drawing:(mm)
