Water PH Sensor SQ-101

Short Description:

Water PH Sensor SQ-101
Applications:
General water treatment, sewage treatment, aquaculture, surface water monitoring;
Environmental protection engineering, cooling tower circulating water, beverage and food, industrial sewage discharge monitoring, etc.
Submersible or Socket Mount.
Product Description
SQ-101 water PH sensor is a vital tool for measuring pH and is commonly used to monitor water quality. It can detect alkalinity and acidity in water as well as other solutions. In wastewater and manufacturing plants, pH sensors can be used to ensure that products and processes are safe and of high quality pH sensor is capable of measuring alkalinity and acidity in water and other solutions. When used properly, pH sensors can ensure the safety and quality of products and processes that occur in wastewater or manufacturing plants.
Application
General water treatment, sewage treatment, aquaculture, surface water monitoring;
Environmental protection engineering, cooling tower circulating water, beverage and food, industrial sewage discharge monitoring, etc.
Submersible or Socket Mount.


Product Detail

FAQ

Product Tags

Technical Parameters

Ph measurement range 0....14pH
Sensitive film number H1020
Zero potential (pH) 7.00±0.30
Membrane resistance <500MΩ
Temperature measurement range 0...60℃
liquid junction Teflon
Slope ≥95%
Process connection thread NPT 3/4
Withstand voltage range 0...4bar
Electrode protective sleeve Have
Shell material PC
Signal line length (m) 5 meters (can be customized)
Electrical connection Pin
Optional BNC, Y inserts
Temperature Sensor Pt1000
Optional PT100, NTC10K, NTC2.252K

 Product Dimensions

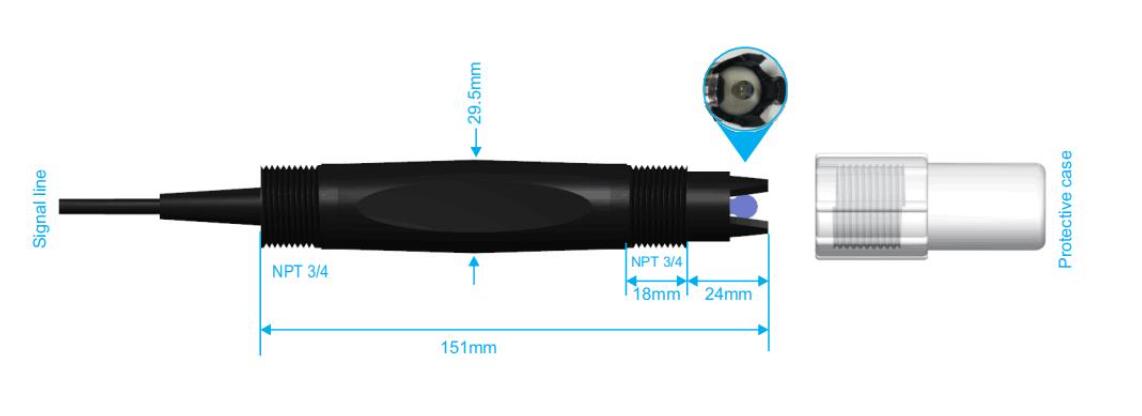

SQ-101 DRAWING
