Technical Parameters
PH measurement range
|
0....14pH
|
Resolution
|
0.01pH
|
Measurement accuracy
|
±0.01pH
|
Temperature measurement range around
|
0...80°C
|
Resolution
|
0.1°C
|
Temperature measurement accuracy
|
±0.3°C
|
Compensation mode of formula
|
Automatic/manual
|
PH signal output
|
4-20mA(adjustable/three-wire system)
|
Current accuracy
|
1%FS
|
Negative output load
|
Less than 750Ω
|
Data communication
|
Rs485(MODBUS-RTU)
|
Working power
|
24VDC,12VDC,5VDC
|
Working humidity
|
Relative humidity<90%
|
Withstand voltage range
|
0...4bar
|
Shell material
|
PPT antiseptic
|
Sensitive film number
|
H1020
|
Process connection thread
|
NPT3/4
|
Electrical connections
|
Direct outlet with 5 meter cable
|
Electrode protective sleeve
|
Include
|
Protection level
|
IP68
|
Weight
|
0.5KG
|

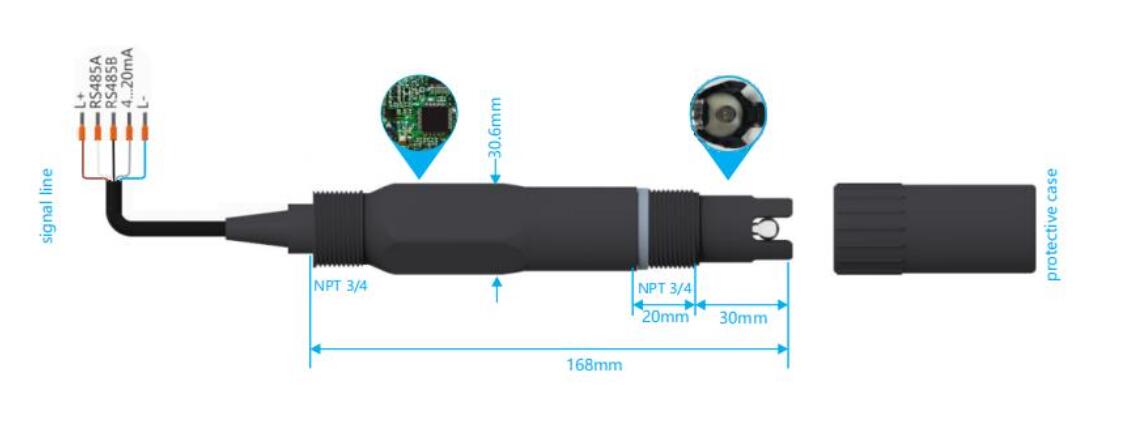

Product Dimensions
