Technical Parameters
Turbidity measurement range
|
0.4000NTU
|
Resolution
|
0.01%
|
Measurement accuracy
|
±1.0%FS
|
Temperature measurement range
|
0...80℃
|
Resolution
|
0.1℃
|
Temperature measurement accuracy
|
±0.2 ℃
|
Withstand voltage range
|
0... 3bar
|
Shell material
|
316 stainless steel
|
Power
|
≤10W
|
Current signal output
|
4~20mA(adjustable/three-wire)
|
Current accuracy
|
1%FS
|
Output load
|
Less than 750 Ω
|
Data communication
|
Rs485(MODBUS-RTU)
|
Working power
|
9~30VDC(12VDCrecommended)
|
Working humidity
|
Relative humidity<90%
|
Process connection
|
G 3/4
|
Electrical connections
|
Direct lead with 5 meter cable
|
Protection class
|
IP68
|

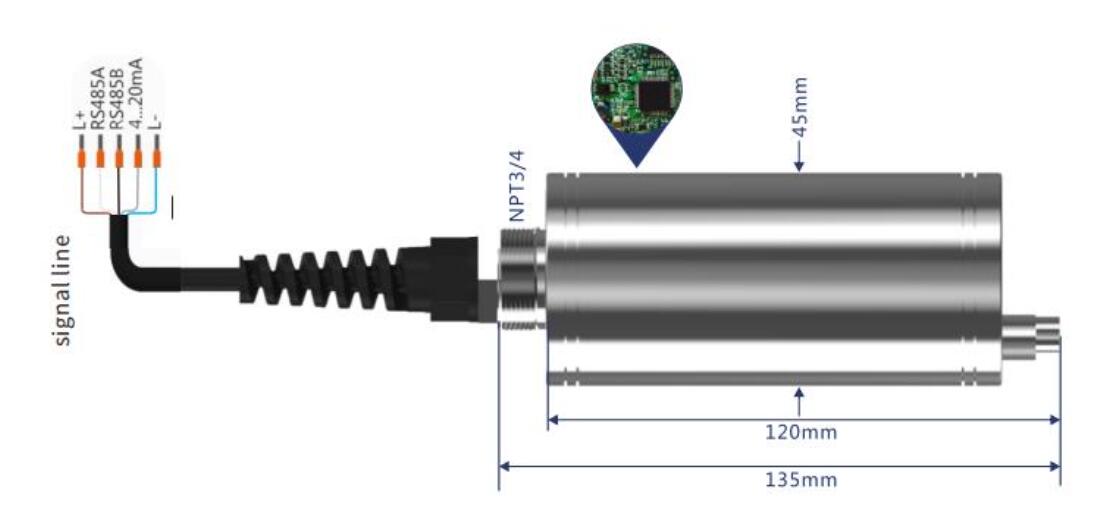

Product Dimensions
